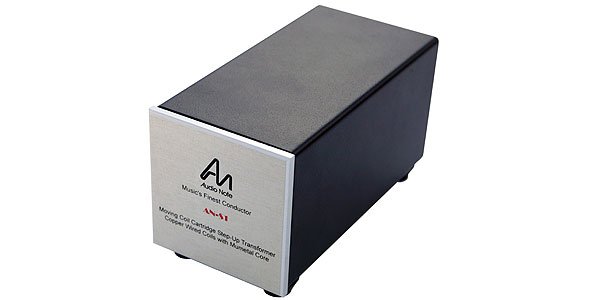

Audio Note AN-S1

The AN-S1 is a passive device, designed to convert the mainly current output of your moving coil cartridge (MC) to a higher voltage, low current signal of sufficient strength to allow a moving magnet (MM) phono stage to amplify it to a suitable level.

The internal transformers used in the AN-S1 are manufactured by Audio Note (UK) exclusively, use the very best core materials and winding technology available at the price, and are housed in mumetal screening canisters to minimise noise and interference.

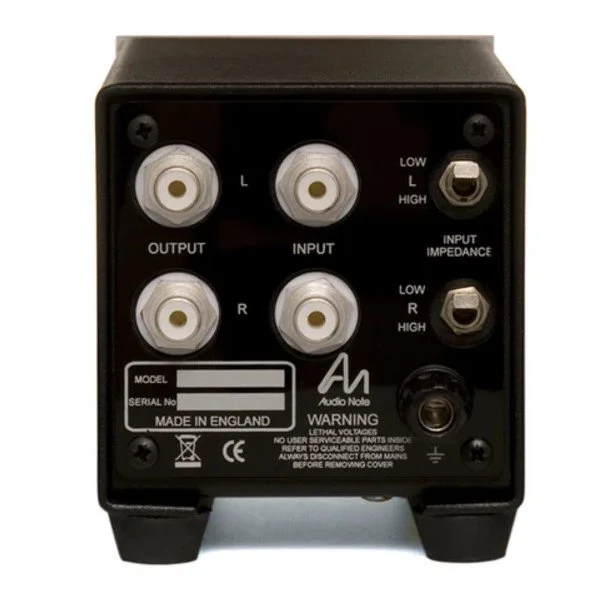

The AN-S1 can be supplied in two versions; the AN-S1/L (low impedance) and the AN-S1/H (high impedance). The "L" version has a switchable input impedance of 3 Ohms and 12 Ohms; the "H" version, 15 Ohms and 60 Ohms.

The 3 Ohm input of the "L" version has been primarily designed to partner the Audio Note IO Moving Coil cartridges, and the 12 Ohm input is intended to be used with cartridges with an internal impedance of around 3 to 4 Ohms.

The 15 Ohm input of the "H" version is designed to partner cartridges with an internal impedance of around 4 to 5 Ohms; the 60 Ohm input is designed for cartridges with internal impedance in the region of 15 to 20 Ohms.

Audio Note AN-S2

The AN-S2 is a passive device, designed to convert the mainly current output of your moving coil cartridge (MC) to a higher voltage, low current signal of sufficient strength to allow a moving magnet (MM) phono stage to amplify it to a suitable level.

The AN-S2 can be supplied in two versions; the AN-S2/L (low impedance) and the AN-S2/H (high impedance). The "L" version has a switchable input impedance of 3 Ohms and 12 Ohms; the "H" version, 15 Ohms and 60 Ohms.

The 3 Ohm input of the "L" version has been primarily designed to partner the Audio Note IO Moving Coil cartridges, and the 12 Ohm input is intended to be used with cartridges with an internal impedance of around 3 to 4 Ohms. The 15 Ohm input of the "H" version is designed to partner cartridges with an internal impedance of around 4 to 5 Ohms; the 60 Ohm input is designed for cartridges with internal impedance in the region of 15 to 20 Ohms.

Audio Note AN-S3

The AN-S3 is a passive device, designed to convert the mainly current output of your moving coil cartridge (MC) to a higher voltage, low current signal of sufficient strength to allow a moving magnet (MM) phono stage to amplify it to a suitable level.​

The internal transformers used in the AN-S3 are manufactured by Audio Note (UK) exclusively. Each transformer is made from 0.1mm laminated Super Mumetal 250 and wound with 99.99% pure copper wire. Each Transformer is then housed in a Mumetal screening canister to minimize noise and interference.

​

​The AN-S3 can be supplied in the following standard versions to suit the internal impedance of your cartridge: -

AN-S3/L  - 3 Ohm input impedance - Primarily designed for use with the Audio Note (UK) IO range

AN-S3/LM - 12 Ohm input impedance - For cartridges with an impedance of 3 to 4 Ohms

AN-S3/M - 27.5 Ohm input impedance - For cartridges with an impedance of 7 to 9 Ohms

AN-S3/H - 48 Ohm input impedance - For cartridges with an impedance of 12 to 16 Ohms

Internal Impedance

It is possible to use our transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the standard inputs, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.

Audio Note AN-S4

The AN-S4 is a passive device, designed to convert the mainly current output of your moving coil cartridge (MC) to a higher voltage, low current signal of sufficient strength to allow a moving magnet (MM) phono stage to amplify it to a suitable level.

​The internal transformers used in the AN-S4 are manufactured by Audio Note (UK) exclusively. Each transformer is made from 0.1mm laminated Super Mumetal 250 and wound with 99.99% pure silver wire. Each Transformer is then housed in a Mumetal screening canister to minimize noise and interference.

The AN-S4 can be supplied in the following standard versions to suit the internal impedance of your cartridge: -

AN-S4/L  - 3 Ohm input impedance - Primarily designed for use with the Audio Note (UK) IO range

AN-S4/LM - 12 Ohm input impedance - For cartridges with an impedance of 3 to 4 Ohms

AN-S4/M - 27.5 Ohm input impedance - For cartridges with an impedance of 7 to 9 Ohms

AN-S4/H - 48 Ohm input impedance - For cartridges with an impedance of 12 to 16 Ohms

​

Internal Impedance

​It is possible to use our transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the standard inputs, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.

Audio Note AN-S5

The AN-S5 is a passive device, designed to convert the mainly current output of your moving coil cartridge (MC) to a higher voltage, low current signal of sufficient strength to allow a moving magnet (MM) phono stage to amplify it to a suitable level.

The internal transformers used in the AN-S5 are manufactured by Audio Note (UK) exclusively. They use our own interleaved Super Mumetal 250 cores, 99.99% pure silver wire and are housed in large Mumetal screening canisters to minimise noise and interference. The transformer cans are then secured inside the chassis with a solid copper clamp, offering the best possible support for these delicate devices.

​​

The AN-S5 can be supplied in the following standard versions to suit the internal impedance of your cartridge: -

​AN-S5/L  - 3 Ohm input impedance - Primarily designed for use with the Audio Note (UK) IO range

AN-S5/LM - 12 Ohm input impedance - For cartridges with an impedance of 3 to 4 Ohms

AN-S5/M - 27.5 Ohm input impedance - For cartridges with an impedance of 7 to 9 Ohms

AN-S5/H - 48 Ohm input impedance - For cartridges with an impedance of 12 to 16 Ohms

​Internal Impedance

​It is possible to use our transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the standard inputs, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.

Audio Note AN-S8

The AN-S8 is a passive device, designed to convert the mainly current output of your moving coil cartridge (MC) to a higher voltage, low current signal of sufficient strength to allow a moving magnet (MM) phono stage to amplify it to a suitable level.

The internal transformers used in the AN-S8 are manufactured by Audio Note (UK) exclusively. They are the finest possible transformers available today, producing a level of information retrieval that is unsurpassed by any other such devices. They use our own interleaved Super Mumetal 250 cores, 99.99% pure silver wire and are housed in large Mumetal screening canisters to minimise noise and interference. The transformer cans are then secured inside the chassis with a solid copper clamp, offering the best possible support for these delicate devices.​

All versions of the AN-S8 now come fitted with our low capacitance Purple PALLAS II silver output cable as standard, hardwired to the secondaries of the transformers.​

The AN-S8 can be supplied in the following standard versions to suit the internal impedance of your cartridge: -

​

AN-S8/L  - 3 Ohm input impedance - Primarily designed for use with the Audio Note (UK) IO range

AN-S8/LM - 12 Ohm input impedance - For cartridges with an impedance of 3 to 4 Ohms

AN-S8/M - 27.5 Ohm input impedance - For cartridges with an impedance of 7 to 9 Ohms

AN-S8/H - 48 Ohm input impedance - For cartridges with an impedance of 12 to 16 Ohms

​

Internal Impedance

​It is possible to use our transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the standard inputs, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.

​If your chosen cartridge has an internal impedance that does not reasonably accurately match one of the standard input impedance values, please consult your Audio Note (UK) Dealer for further advice regarding which SUT to choose.

Audio Note AN-S9

The AN-S9 is a passive device, designed to convert the mainly current output of your moving coil cartridge (MC) to a higher voltage, low current signal of sufficient strength to allow a moving magnet (MM) phono stage to amplify it to a suitable level.

The internal transformers used in the AN-S9 are manufactured by Audio Note (UK) exclusively. They are the finest possible transformers available today, producing a level of information retrieval that is unsurpassed by any other such devices. They use our own interleaved Super Mumetal 250 cores, 99.99% pure silver wire and are housed in large Mumetal screening canisters to minimise noise and interference. The transformer cans are then secured inside the chassis with a solid copper clamp, offering the best possible support for these delicate devices.

The AN-S9 can be supplied in the following standard versions to suit the internal impedance of your cartridge: -

​AN-S9/L  - 3 Ohm input impedance - Primarily designed for use with the Audio Note (UK) IO range

AN-S9/LM - 12 Ohm input impedance - For cartridges with an impedance of 3 to 4 Ohms

AN-S9/M - 27.5 Ohm input impedance - For cartridges with an impedance of 7 to 9 Ohms

AN-S9/H - 48 Ohm input impedance - For cartridges with an impedance of 12 to 16 Ohms

​

Internal Impedance

​It is possible to use our transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the standard inputs, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.

​If your chosen cartridge has an internal impedance that does not reasonably accurately match one of the standard input impedance values, please consult your Audio Note (UK) Dealer for further advice.

​

Output cables

​Rather than installing the usual output RCA connectors, we decided to hard wire a pair of our Pallas low capacitance cables directly to the outputs of the transformers. However, if you would prefer standard RCA sockets, we can provide these as an option. We can also install any other Audio Note (UK) interconnect cable of your choice. Please consult your authorised Audio Note (UK) Dealer for further information.
